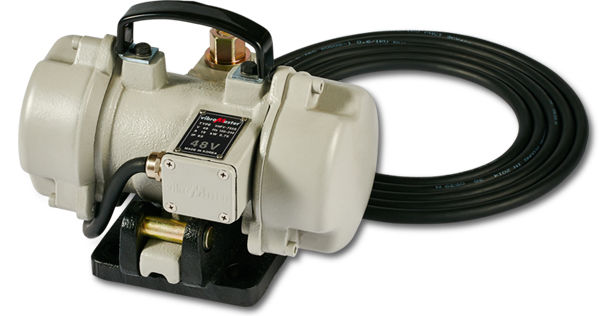

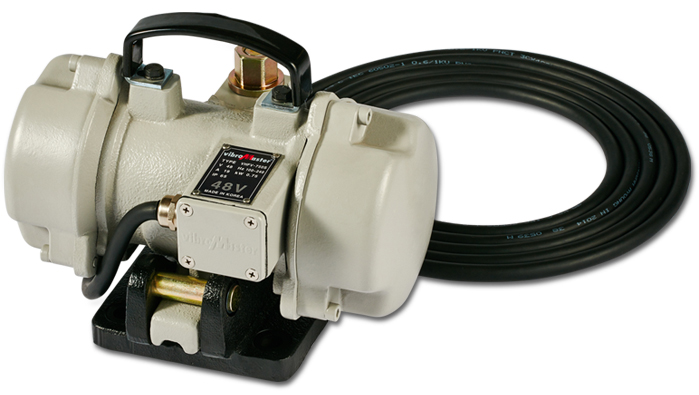

Vibration Motor
Vhfv-750s

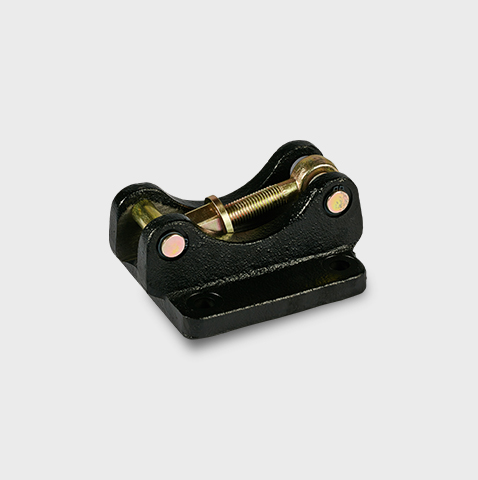

The vibration motor is designed for quick mounting using hook brackets and hinge bolts, featuring a sealed design for high-frequency vibration and steam curing to achieve superior concrete surface quality.
ADVANTAGE
Quick mounting type
design
High frequency
vibration
Sealed design for
steam curing
DETAIL
SPECIFICATION
| TECHNICAL DATA | VHFV - 750S |
|---|---|
| Output ( W ) | 850 |
| Voltage ( V ) | 48 |
| Current ( A ) | 21 |
| Frequency ( Hz ) | 100 ~ 240 |
| Centrifugal Force ( kN ) | 11.8 |
| Weight ( kg ) | 21.3 |
