HOME / Concrete Vibrators / High-frequency Vibrators / Multi Vibrator
VIBROMASTER MULTIVIBRATOR

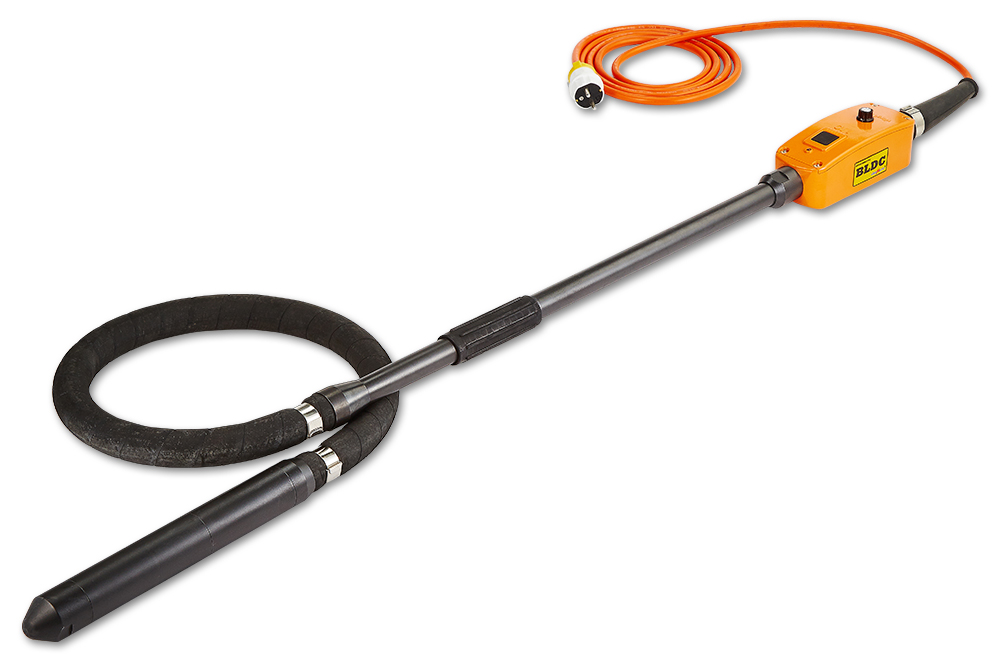

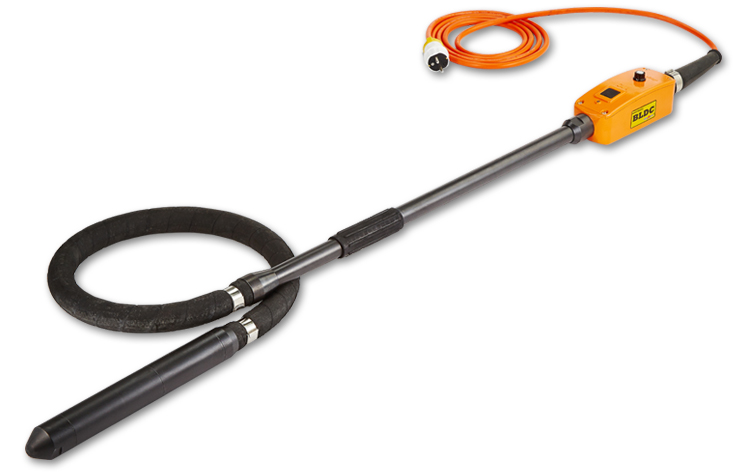

Multi Vibrator
Vti series
A multi-purpose high-frequency vibrator used for inclined walls and abutments of bridges where general vibrators are difficult to apply, as well as on building wall frames and columns.
ADVANTAGE
For parapet wall
For wall-frame structures
For building structure pillars
DETAIL
SPECIFICATION
| Technical Data | VTI - 35P | VTI - 40P | |||
|---|---|---|---|---|---|

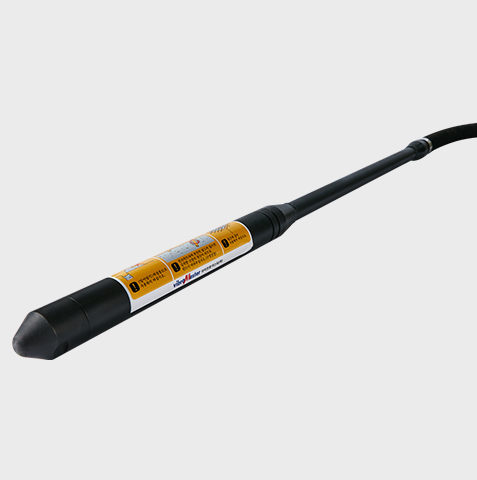

| Vibrating Rod | Diameter ( mm ) | 35 | 40 | ||
| Length ( mm ) | 1,000 | ||||
| Weight ( kg ) | 8.0 | 8.5 | |||
| Output | Voltage ( V ) | 48 | |||
| Phase ( Ø ) | 3 | ||||
| Frequency ( Hz ) | 240 | ||||
| Current ( A ) | 4.0 | 7.5 | |||
| Vibration Speed ( vpm ) | 12,000 | ||||
