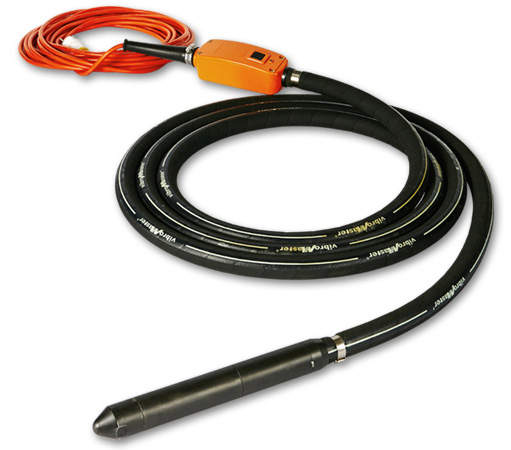

High Frequency Concrete Vibrator
BLDC Concrete
Vibrator
VL-45
A high-performance premium product that replaces the induction AC motor of VibroMaster's existing integrated high-frequency vibrator with a BLDC motor, delivering extended product lifespan and powerful vibration.
ADVANTAGE
Excellent durability
Light weight
Waterproof design
Long lifetime by built-
in BLDC motor
Excellent heat rejection
DETAIL
SPECIFICATION
| Technical Data | VL - 45 | |
|---|---|---|
| Vibrating Rod | Diameter ( mm ) | 45 |
| Length ( mm ) | 350 | |
| Weight ( kg ) | 3.2 | |
| Controller | Size ( mm ) | 230 X 72 X 66 |
| Weight ( kg ) | 3.2 | |
| Input | Voltage ( V ) | 200 - 240 |
| Phase ( Ø ) | 1 | |
| Frequency ( Hz ) | 50/60 | |
| Output | Voltage ( V ) | 200 |
| Phase ( Ø ) | 3 | |
| Frequency ( Hz ) | 12,000 | |
