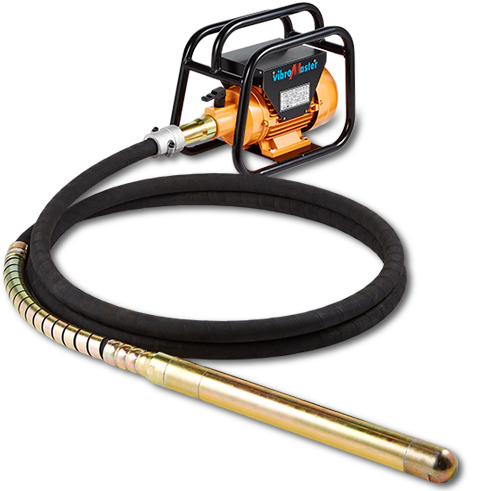

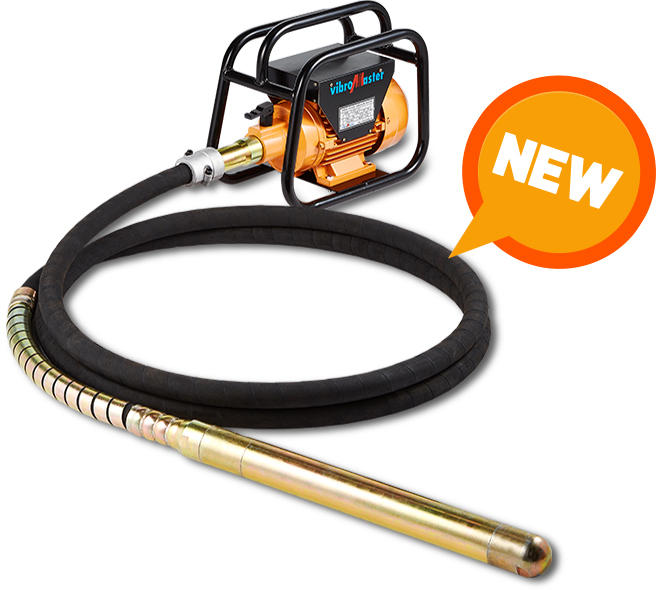

Propulsion Three-phase Motor
VS-3560
The propulsion three-phase motor is an inverter-equipped lightweight motor customized for field use, maintaining consistent output at any domestic/international site (50/60Hz) to enable placement without RPM fluctuation.
ADVANTAGE
Stable power supply by
built-in inverter

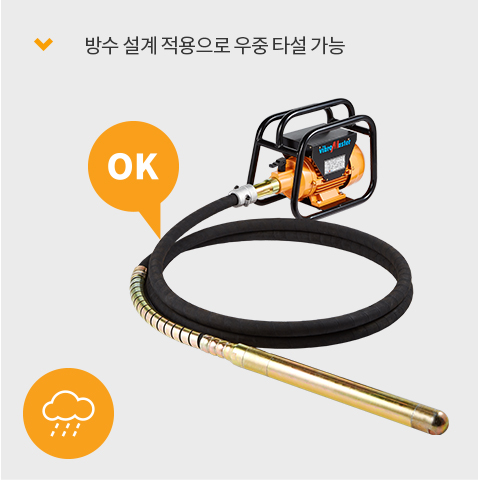

Waterproof
design

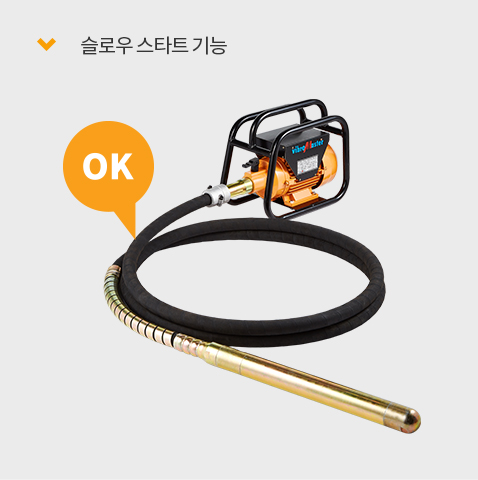

Slow start
function
Enhanced
external frame
Excellent
heatsink
Out-touch
system
DETAIL
SPECIFICATION
| TECHNICAL DATA | VS - 3560 |
|---|---|
| Phase | 3 |
| HP | 1.5 |
| RPM | 3,900 |
| Weight ( kg ) | 11.1 |
| Slow Start | Yes |
| Voltage ( V ) | 200 |
| Frequency ( Hz ) | 50 ~ 60 |
Vibrator Action Rod
VibroMaster propulsion action rods are upgraded products with significantly enhanced durability compared to existing products, considering the user's field environment and frequency of use.
NSK Bearing
Rubber Tensile 800N
Flexible Shaft # 70
SPECIFICATION

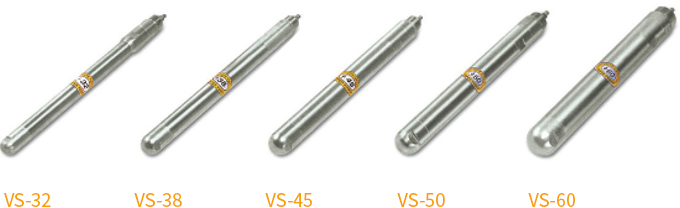

| Technical Data | VS - 32 | VS - 38 | VS - 45 | VS - 50 | VS - 60 |
|---|---|---|---|---|---|
| Vibrating Rod Size ( mm ) | 32X470 | 38X492 | 45X502 | 50X500 | 60X470 |
| Amplitude ( mm ) | 0.75 | 0.85 | 0.95 | 1 | 1.1 |
| Frequency ( Hz ) | 160 | 180 | 180 | 180 | 200 |
| Rubber Hose Diameter ( mm ) | 30 | 32 | 36 | 36 | 36 |
| Rubber Hose Length (m) | 5m / 6 & 8m | ||||
