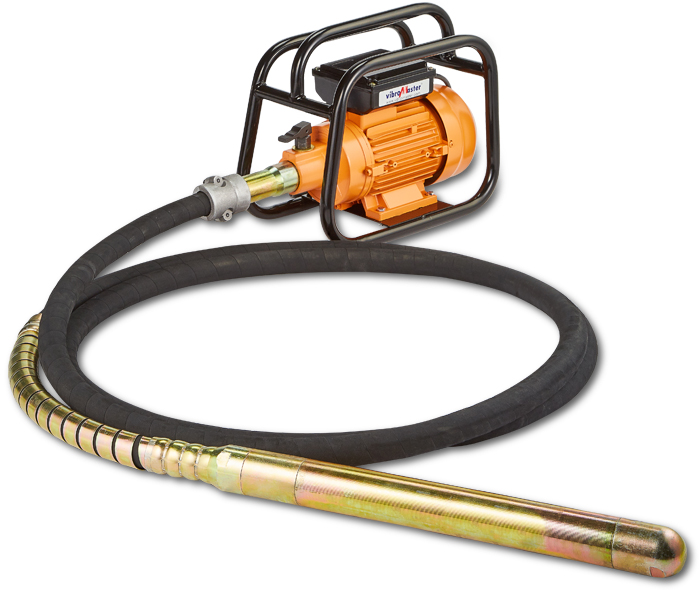

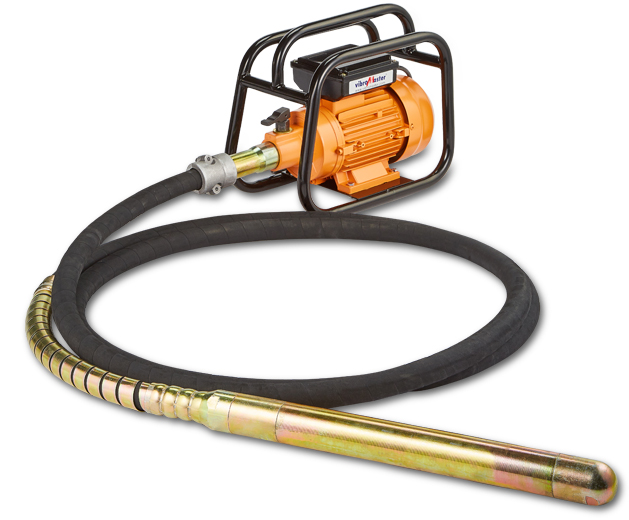

Propulsion Single-phase Motor
VS-1260
VibroMaster propulsion single-phase motor has enhanced durability for construction sites, features a convenient frame for concrete placement, and employs a one-touch system for attaching and detaching action rods with one hand.
ADVANTAGE
Excellent
durability

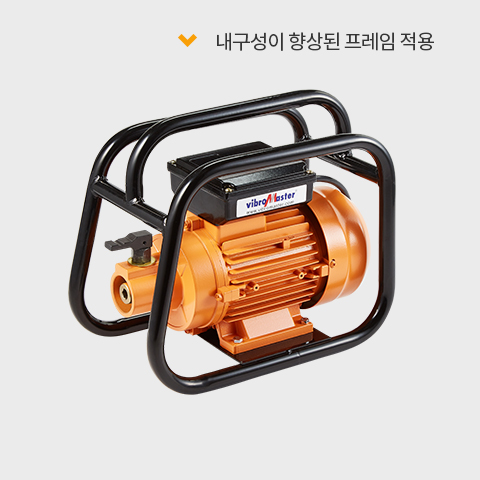

Convenient
external frame

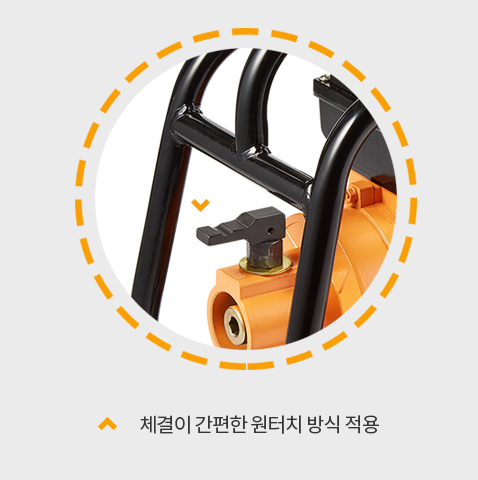

One-touch
system
DETAIL
SPECIFICATION
| TECHNICAL DATA | VS-1260 |
|---|---|
| Phase | 1 |
| HP | 1.2 |
| RPM | 3,450 |
| Weight ( kg ) | 9.3 |
| Voltage ( V ) | 220 |
| Frequency ( Hz ) | 60 |
Vibrator Action Rod
VibroMaster propulsion action rods are upgraded products with significantly enhanced durability compared to existing products, considering the user's field environment and frequency of use.
NSK bearing
Rubber Tensile 800N
Flexible Shaft # 70
SPECIFICATION

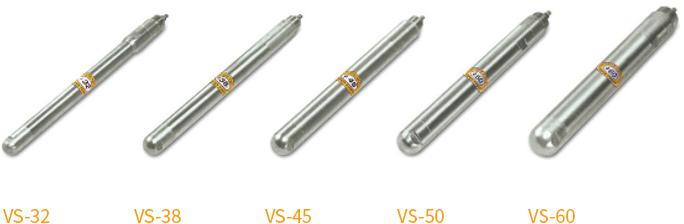

| Technical Data | VS - 32 | VS - 38 | VS - 45 | VS - 50 | VS - 60 |
|---|---|---|---|---|---|
| Vibrating Rod Size ( mm ) | 32X470 | 38X492 | 45X502 | 50X500 | 60X470 |
| Amplitude ( mm ) | 0.75 | 0.85 | 0.95 | 1 | 1.1 |
| Frequency ( Hz ) | 160 | 180 | 180 | 180 | 200 |
| Rubber Hose Diameter ( mm ) | 30 | 32 | 36 | 36 | 36 |
| Rubber Hose Length (m) | 5m / 6 & 8m | ||||
