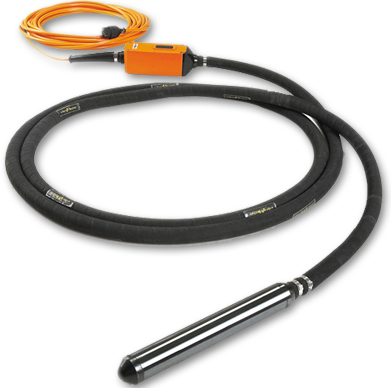

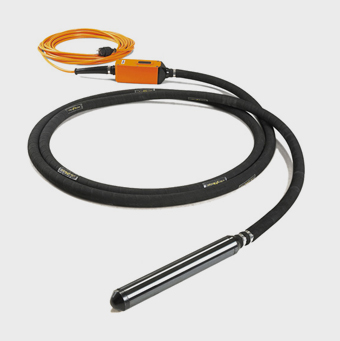

An integrated-type vibrator equipped with a high-frequency motor and electronic inverter, which requires no separate inverter or converter and can be used by connecting directly to the power supply.
Easy to use
High performance

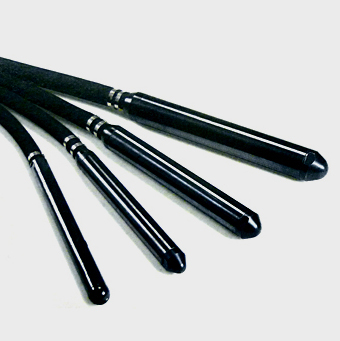

Various head size

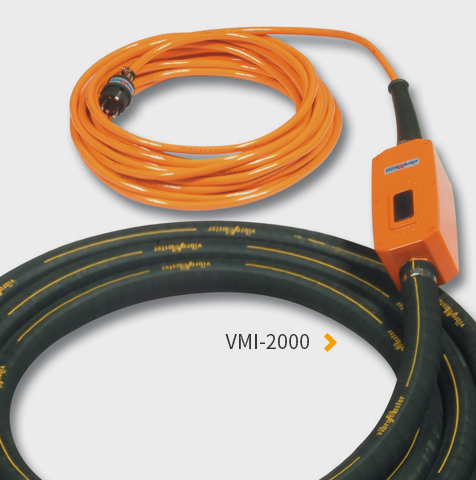

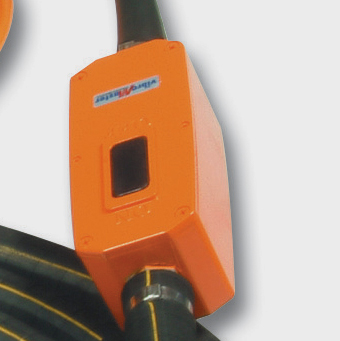

Built-in inverter, VMI-2000
Even if the input voltage at the job site varies, the built-in inverter maintains consistent output, ensuring high quality concrete work.
Among electronic inverter-based concrete vibrators, this is the smallest and lightest, making it easy to apply to all concrete work, increasing productivity, and providing convenient storage and transport. The inverter box also features waterproof design, making it suitable for rain operations and humid locations.
The inverter automatically cuts off any leakage or electrical shorts that may occur in the vibrator, ensuring worker safety.

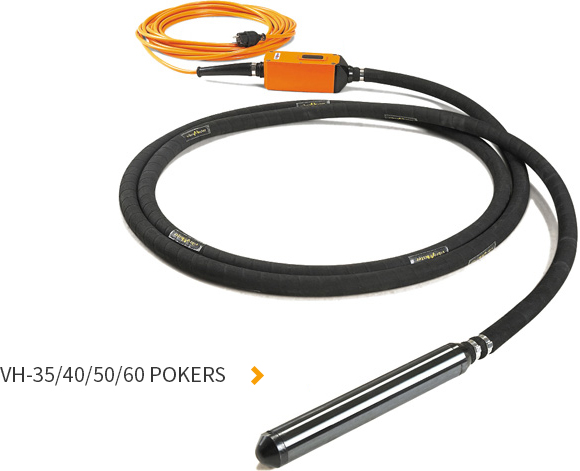

| TECHNICAL DATA | VH - 35 | VH - 40 | VH - 50 | VH - 60 | |
|---|---|---|---|---|---|
| Vibrating Rod | Diameter ( mm ) | 35 | 40 | 50 | 60 |
| Weight ( kg ) | 2.3 | 2.8 | 4.3 | 7.2 | |
| Length ( mm ) | 355 | 355 | 375 | 420 | |
| Inverter | Diameter ( mm ) | 185 X 78 X 75 | |||
| Weight ( kg ) | 2.1 | ||||
| Input | Voltage ( V ) | 110~250 | |||
| Phase ( Ø ) | 1 | ||||
| Frequency ( Hz ) | 50/60 | ||||
| Output | Voltage ( V ) | 48 | 110 | 110 | 200 |
| Phase ( Ø ) | 3 | ||||
| Frequency ( Hz ) | 240 | ||||
| Current ( A ) | 2.6 | 2.9 | 4.8 | 7.0 | |
| Vibration Speed ( vpm ) | 12,000 | ||||
