vibromaster concrete
vibrator’s pockers & inverters dsc series

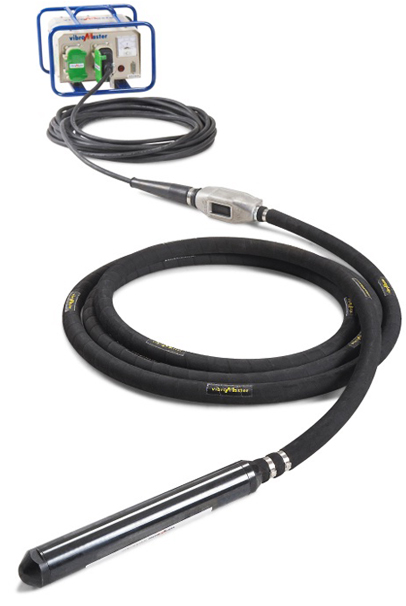

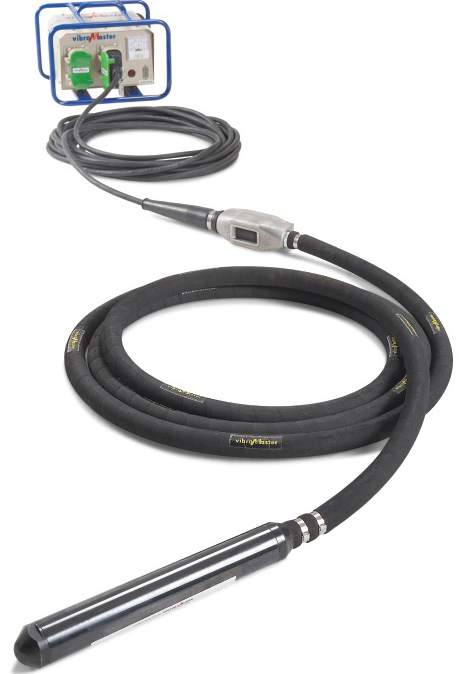

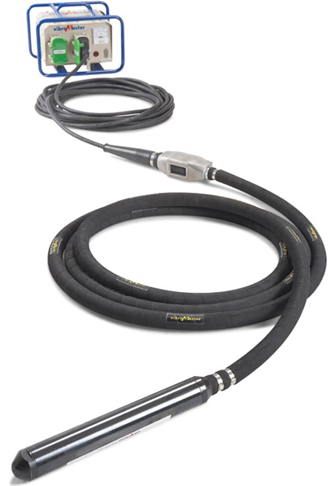

Stationary Vibrator

DSC-220MI

The DSC series is a high-efficiency stationary high-frequency inverter equipped with electronic micro digital circuits, vibrator-specific LSI and hybrid I.C semiconductor components that convert single-phase 220V input power to three-phase 48V.

ADVANTAGE

Using semiconductor components
achieves compact, lightweight, high-efficiency design

Frequency adjustment function
enables ready-mix concrete slump adaptation

Continuously provides
stable power supply

Protection circuit appropriately
responds to input voltage drops
or leakage currents

DETAIL

SPECIFICATION

TECHNICAL DATA DSC - 220MI
Input Power ( Kva ) 2.5
Voltage ( V ) 90~250
Current ( A ) 10
Frequency ( Hz ) 50/60
Phase ( Ø ) 1
Output Power ( Kva ) 2.0
Voltage ( V ) 48
Current ( A ) 25.0
Frequency ( Hz ) 240
Phase ( Ø ) 3
Vibrating Rod Connection 2
Size ( W X L X H / mm ) 335 X 270 X 260
Weight ( kg ) 6.7

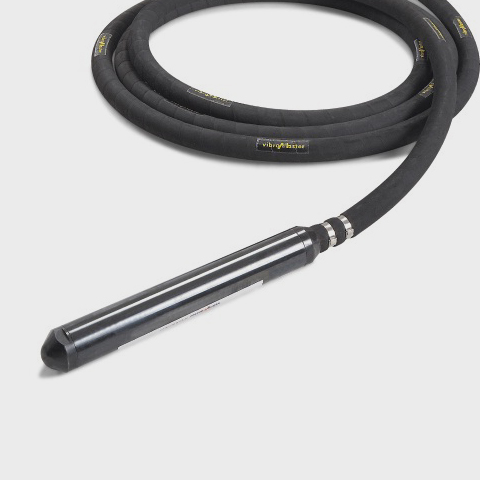

Pocket Vibrator

Vm sERIES

Enhanced work efficiency with upgraded motor featuring low-heat dissipation design.

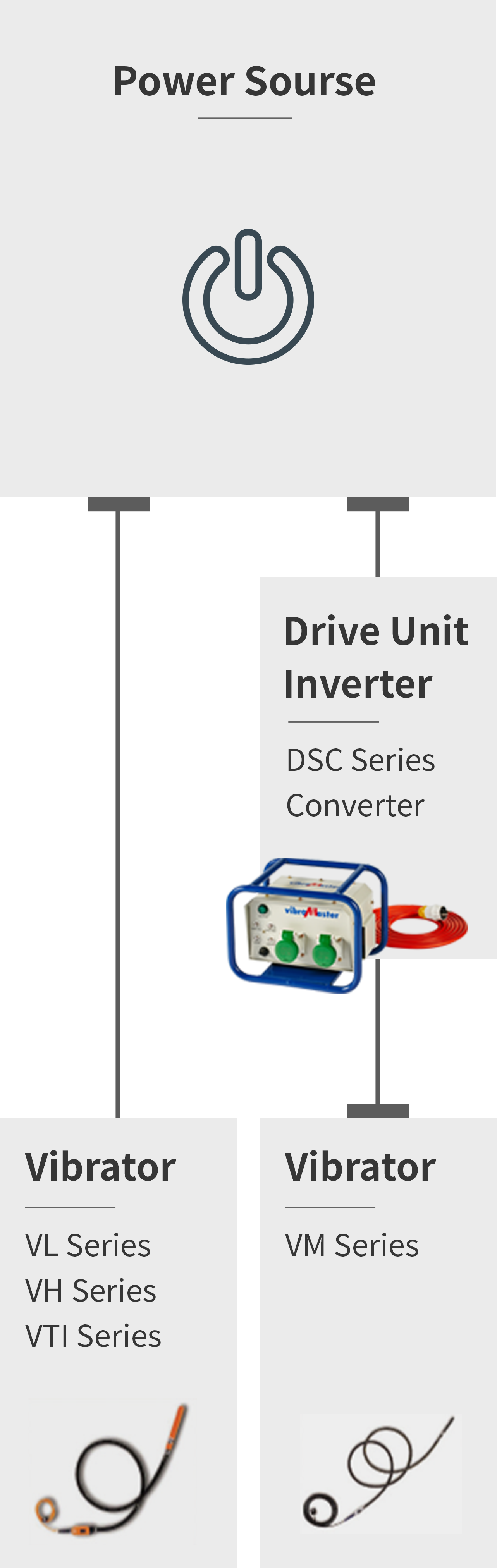

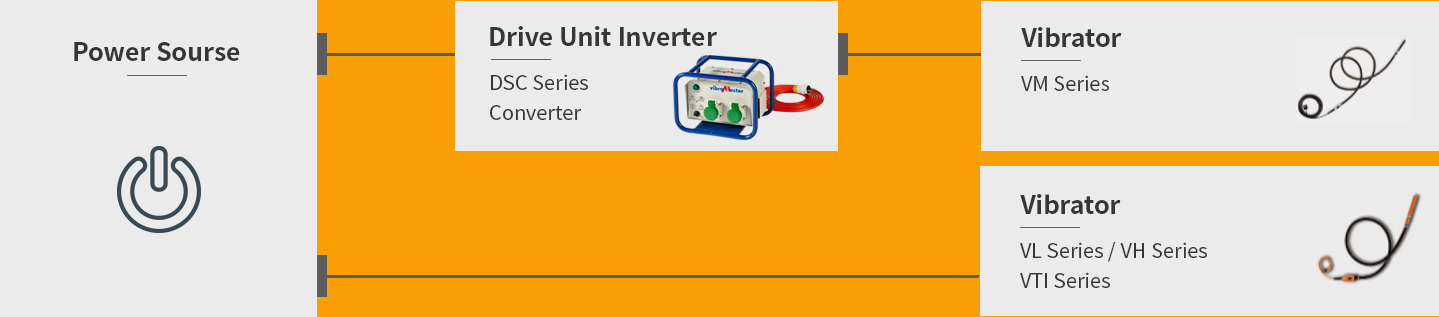

OPERATING SYSTEM

DETAIL

SPECIFICATION

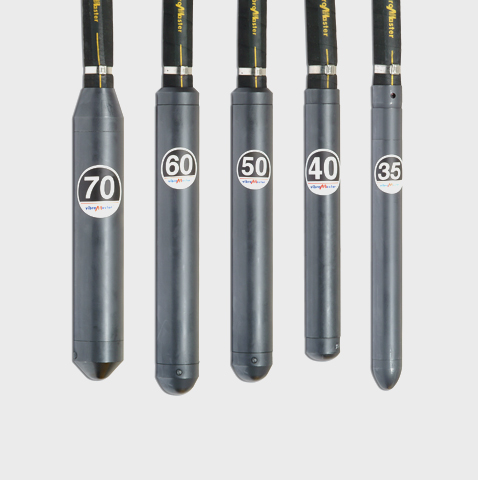

TECHNICAL DATA VM - 35 VM - 40 VM - 50 VM - 60
Vibrating Rod Diameter ( mm ) 35 40 50 60
Length ( mm ) 355 355 375 420
Weight ( kg ) 2.3 2.8 4.3 7.2
Output Voltage ( V ) 48
Phase ( Ø ) 3
Frequency ( Hz ) 240
Current ( A ) 4.0 7.5 8.0 10.0
Vibration Speed ( vpm ) 12,000
